Dropping point of lubricating grease - ASTM D566The apparatus, in acc. with ASTM D 566 - IP 132 - ISO 2176, is a benchtop model which houses the components and a Panel PC with touch screen. A software running under Microsoft Windows embedded permits to select the test method and the test parameters, run the test automatically, store, retrieve and print data, diagnose and calibrate the instrument offering in the meanwhile all the features of Windows systems such as LAN connectivity. A unique cooling system permits to cool down quickly the heating furnace allowing to start a new test in a few minutes.
Grease worker - ASTM D217The apparatus is in acc. with ASTM D 217 - IP 50 - ISO 2137. Worked penetration results may be used to establish the consistency of lubricating greases after prolonged working. The change in worked penetration results on a grease after prolonged working are believed to be a measure of its shear stability under the conditions of the test. The electrically operated grease working machine consists of a geared motor for 60 strokes/min mounted on a aluminium base with clamps to fix the grease workers. The number of strokes, continuously showed on a display, can be preset to stop the worker after any required number of strokes up to 100,000.
Oxidation stability of greases - ASTM D942New automatic benchtop equipment acc. to ASTM D 942 available in 2, 4 or 6-position versions, with aluminum block heating. Vessels are equipped with pressure transducers, cables and quick connectors while the touch-screen interface plots pressure and temperature data on a chart and allows user to enter, save, retrieve, print test reports and run diagnostic and calibration routines. Ethernet and USB ports permit to connect to LIMS or printers.
Rolling thin film oven test of bitumens RTFOT - ASTM D2872The apparatus, in acc. with ASTM D 2872 - EN 12607, consists of a forced air circulation oven suitable for temperatures up to 180°C and equipped with a rotating shelf placed inside along with a coil that preheats the air directed into the sample container.

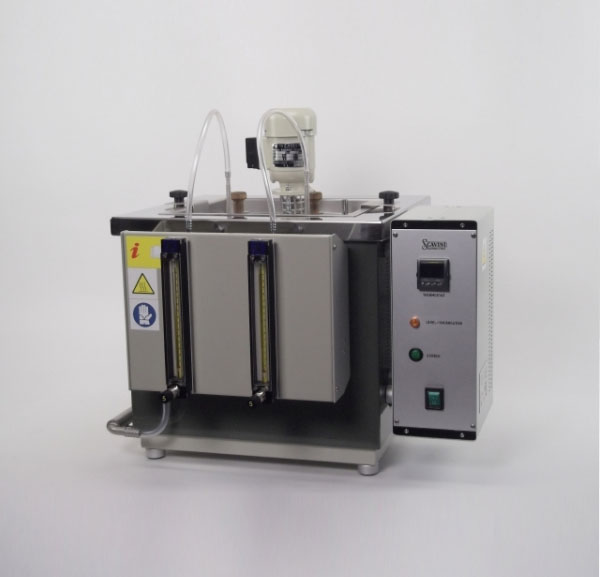

Evaporation loss of greases and oils The apparatus, in acc. with ASTM D 972 – IP 183, consists of a case containing a stainless steel bath and supporting precision flowmeters. The bath is equipped with a stainless steel cover with holes for the introduction of the evaporation cells

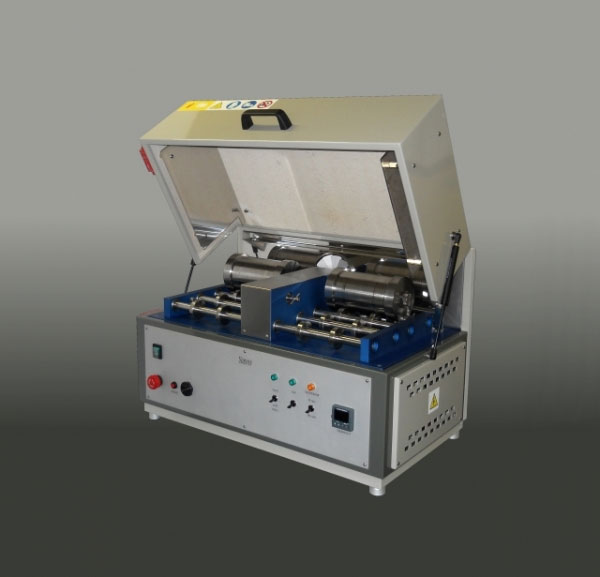

Roll stability of lubricating grease - ASTM D1831The apparatus, in acc. with ASTM D 1831, consists of a benchtop case with a hinged shield that covers the rolling mechanism vane. Two and four-cylinder units are available.

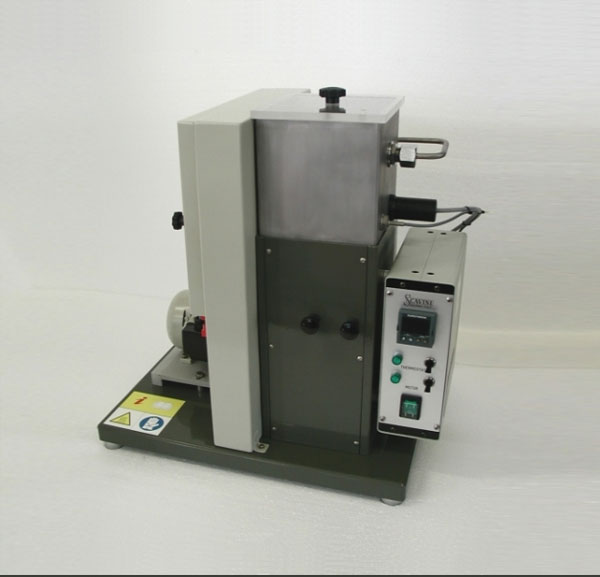

Water washout characteristics of lubricating grease - ASTM D1264The apparatus, in acc. with ASTM D 1264, consists of a benchtop case supporting the motor, the bath, the pump and the water pipes. All the electronics is contained in a control box fixed to the instrument body.
High temperature evaporation loss - ASTM D2595The apparatus, in acc. with ASTM D 2595, consists of a case hosting the aluminium block and supporting precision flowmeters. The block has jackets for the introduction of the cups: the air preheater is in the bottom. Each position is equipped with a digital display, connected to a thermocouple, that continuously shows the temperature of the air coming out from the cell.
Apparatus for Flow pressure properties of lubricants and greases to determine the lower service temperatureModel : FPT-P2 Flow Pressure Tester , Method : DIN 51805-2.
Apparatus for Shear stability of lubricating greasesModel : RST-T200-P4 Roll Stability Tester , Method ASTM D1831
Apparatus for Oxidation behaviour of lubricating greases under mechanical and thermal stressModel: Oxi-T200-P Oxidation Roll Tester 2, ASTM D1831

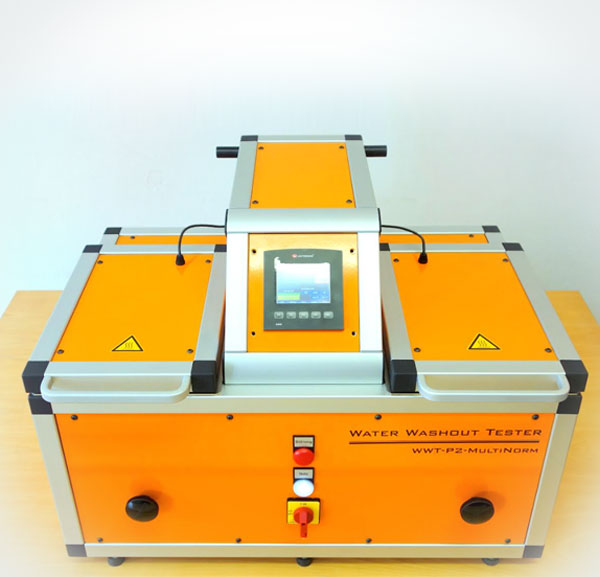

Apparatus for Water resistance of lubricating greasesModel: WWT P1 / WWT P2 Water Washout Tester , ASTM D 1264 DIN 51807 Part 2, DIN ISO 11009
Apparatus for Compression and flow behaviour of lubricating greasesModel : HGT-400 Hydraulic grease tester
Apparatus for Solid foreign matter in lubricating greasesModel : HGP Grease press device , DIN 51813
Apparatus for Filterability & Solid foreign matter in lubricating greasesModel : HGP PLUS Grease press device, DIN 51813
Apparatus for Shear stability of lubricanting greasesModel : Grease Worker WAK, Klein
